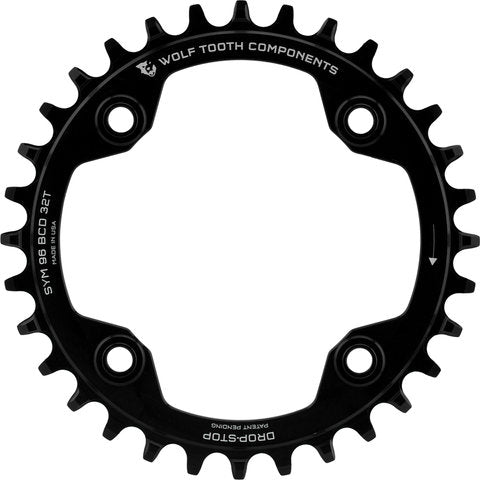

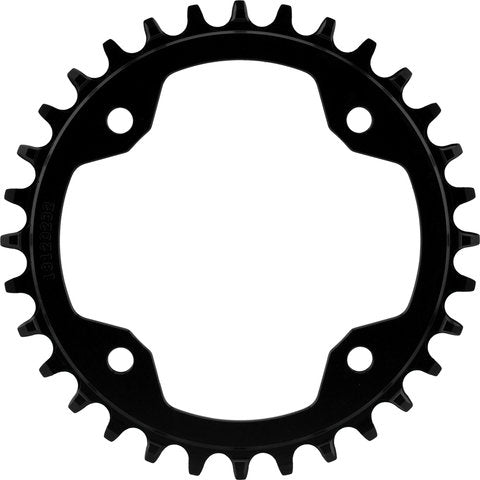

Wolf tooth components 96 bcd symmetrical chainring for shimano compact triple

Product Description The can be used with the Shimano cranks M782, M672, M622 and M612. Specifications:Application:All Mountain, Cross Country, EnduroMount:96 mm bolt circle diameter, 4-armTeeth:30 T, 32 T, 34 TGearing:1x9-speed, 1x10-speed, 1x11-speed, 1x12-speedTechnical Information:Chainline:49 mmMaterial:aluminium (7075-T6)Compatibility:Crank: Shimano 4-arm cranks with symmetrical 96 mm bolt circle: FC-M782, FC-M672, FC-M622, FC-M612 (known as Compact Triple)not compatible with Shimano XTR M9000 or XT M8000 Chain: all 9-, 10- and 11-speed chainsSRAM Eagle, KMC, Connex and Wippermann 12-speed chains10-speed chain recommended for 9-speed drivetrains Chainring Bolts: 10 mm boltsFeatures:Wolf Tooth Wide-Narrow designoptimal chainline also for most Boost bikesideal in combination with 96 BCD Bash RingMade in the USA Note from the manufacturer:For very muddy conditions a chain guide in combination with clutch rear derailleur is recommended.Technology:Drop-Stop® A Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance. The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't. The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud. In the A version, the original version of Drop-Stop, the profile is optimized for use on mountain bikes. The wide teeth are slightly wider than Drop-Stop B. The outer sides of the narrow and wide teeth guide the chain. Manufacturer Numbers:30 tooth:SYM963032 tooth:SYM963234 tooth:SYM9634Contents:1 x Wolf Tooth Components 96 BCD Symmetrical Shimano Compact Triple chainring Weight: black | 32 : 50 g Manufacturer: Wolf Tooth Components 6400 W 105th St Bloomington MN 55438 USA info@wolftoothcomponents.com Distributor: Cosmic Sports GmbH Leyher Straße 47 90763 Fürth Germany info@cosmicsports.de
