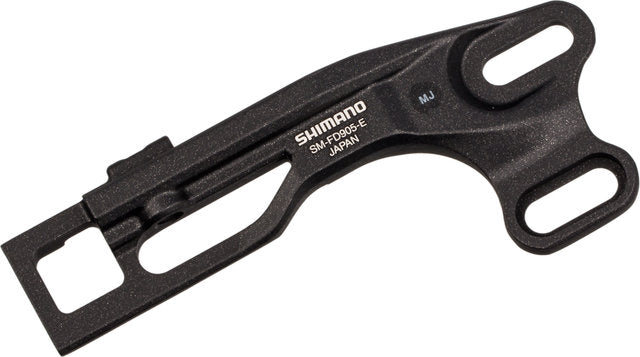

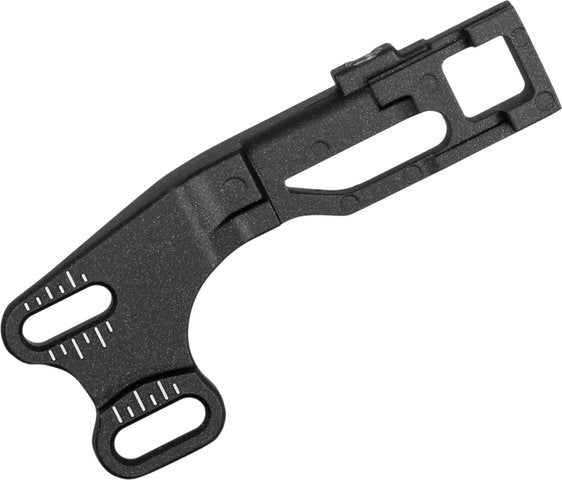

Shimano sm-fd905 adapter for xtr di2 fd-m9050 m9070, xt di2 fd-m8070

Product Description The Shimano adapter SM-FD905 - mounting of XTR and XT Di2 front derailleurs With the Shimano adapter SM-FD905 you can mount XTR and XT Di2 front derailleurs with a clamp (high clamp, low clamp), directly to the frame (direct mount) or directly to the bottom bracket (E-Type). Specifically, it is suitable for FD-M9050, FD-M9070 and FD-M8070. The clamps have a diameter of 34.9 mm, but shims for 31.8 and 28.6 mm are included. Technical Information:Material:AluminiumChainring Size (max.):34-40 teethFeatures:paintedDirect Mount and E-Type versions are compatible with B-cranks with 3 mm further out chainlineCompatibility:FD-M9050FD-M9070FD-M8070Models:high clamp: Type:SM-FD905-HMount:high clampClamp Diameter:34.9 mm with adapter 31.8/28.6 mmManufacturer Number:I-SMFD905HX low clamp: Type:SM-FD905-LMount:low clampClamp Diameter:34.9 mm with adapter 31.8/28.6 mmManufacturer Number:I-SMFD905LX direct mount: Type:SM-FD905-DMount:direct mount (seat tube)Manufacturer Number:I-SMFD905D E-type: Type:SM-FD905-EMount:bottom bracket mountManufacturer Number:I-SMFD905EContents:1 x Shimano SM-FD905 front derailleur adapter1 x 28.6 mm shim (only for high / low clamp)1 x 31.8 mm shim (only for high / low clamp) Weight: grey | direct mount: 21 g grey | E-type: 27 g Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
