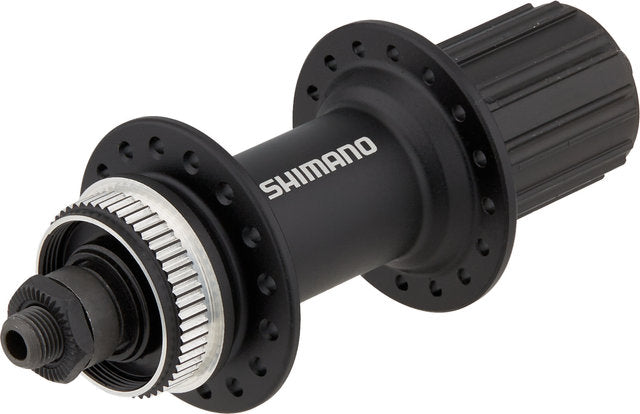

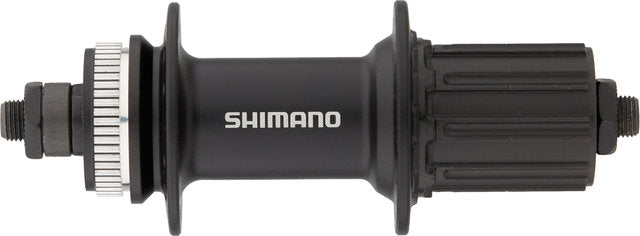

Shimano fh-ur600 disc center lock quick release rear hub

Product Description Shimano's FH-UR600 Center Lock Disc Rear Wheel Hub - The ideal complement for Linkglide drivetrains The FH-UR600 is a rear hub for quick release frames with 135 mm installation width and was launched by Shimano especially for the XT and Deore Linkglide drivetrains. Their steel pawl freehub harmonizes perfectly with the smooth and reliable shifting performance offered by these components designed for e-bikes. Nevertheless, the hub is compatible with all 8- to 11-speed cassettes, whereby MTB 11-speed cassettes and cassettes up to 10-speed require a spacer ring, which comes included. FH-UR600 is characterised by high load capacity and long durability, to which not least the low-maintenance cup & cone bearings and the internal grease jacket contribute. The Center Lock mount makes it very easy to attach the brake rotor to the hub. Guidelines for Replacing E-bike Components:Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance. Specifications:Application:CityBrake Type:Center Lock DiscFreehub Body Type:Steel, pawlsTechnical Information:Body Material:aluminiumBearings:cup & coneSeals:contactSpoke Hole Diameter:2.0 mmCompatibility:Recommended Tapes: CS-LG600-10CS-LG600-11Features:optimal freehub for smooth and reliable shifting with Linkglidehighly resilient and durableflange diameter 53.5 mm left, 53.8 mm right7.45 mm offsetCBN-finished and polished bearingssteel axleanodised hub shellfreehub body has contact sealinternal grease sleevequick release lever made of anodised aluminiumquick release length 168 mmTechnology:Cup and Cone Bearings Angular contact ball bearings of the cup & cone type are superior to sealed cartridge bearings in terms of load carrying capacity, as they distribute lateral and vertical forces better, and thus run particularly smoothly and last a long time. They are also easier to adjust, maintain and replace. Models:10 x 135 mm / 32 hole / Shimano: Over Locknut Dimension:10 x 135 mm quick releaseSpoke Hole Count:32 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:To mount 8-/9-/10-speed cassettes and 11-speed MTB cassettes on a Shimano Road rotor, a 1.85 mm spacer ring is required (included).Flange Distance (L/R):55.7 mm (35.3 mm/20.4 mm)Partial Bolt Circle Diameter (L/R):44.6 mm/44.6 mmManufacturer Number:E-FHUR600BZA 10 x 135 mm / 36 hole / Shimano: Over Locknut Dimension:10 x 135 mm quick releaseSpoke Hole Count:36 holeFreehub:Shimano RoadGearing:8-/9-/10-/11-/12-speedNote:To mount 8-/9-/10-speed cassettes and 11-speed MTB cassettes on a Shimano Road rotor, a 1.85 mm spacer ring is required (included).Flange Distance (L/R):55.7 mm (35.3 mm/20.4 mm)Partial Bolt Circle Diameter (L/R):44.6 mm/44.6 mmManufacturer Number:E-FHUR600AZAContents:1 x Shimano FH-UR600 rear hub1 x Shimano quick release1 x Shimano spacer 1.85 mm Weight: black | Shimano Road | 32 | Shimano Road: 381 g Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
