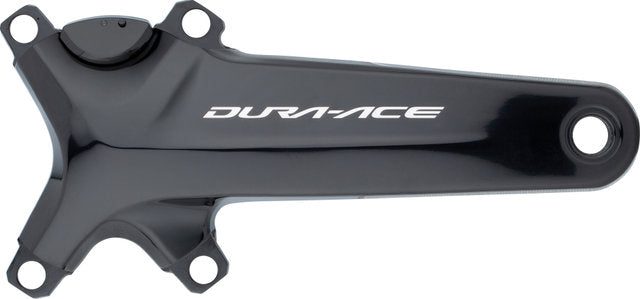

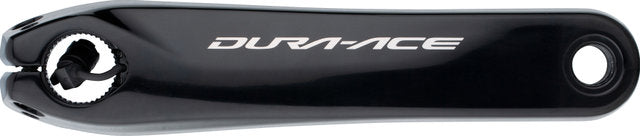

Shimano dura-ace fc-r9100-p hollowtech ii power meter cranks w o chainrings

Product Description The Dura-Ace FC-R9100-P Power Meter Crankset by Shimano - Real-Time Power Measurement Shimano presents its first-ever power meter - the Dura-Ace FC-R9100-P crankset. This crankset was developed in collaboration with bikefitting.com, Shimano's sister company specialising in bike ergonomics. Power is measured using the crank arm from both the left and right sides. The cadence and other important values for training, such as smooth pedal strokes, are also part of the power meter's range of functions. It can be paired with bike computers enabled with ANT+ or Bluetooth. The FC-R9100-P cranks harness real-time power measuring and recording, and can aggregate and assess measurement data. Just like „normale“ FC-R9100 without power measuring, the Power Meter crankset is a hollowtech crankset with hollow forged aluminium arms and Hollowtech II construction for an optimum stiffness-to-weight ratio. The chainstays in the present version are not included. Only the chainring bolts are included. Information regarding the return of batteries and electrical equipment:Information on the return and disposal of used batteries and electrical equipment can be found here. Specifications:Application:Road, Triathlon & Time TrialType:power meter cranks (on both sides)Compatibility:2-speedChainring Mount:110 mm pitch circle, 4-arm asymmetricalTechnical Information:Series:Dura-Ace R9100Crank Arm Material:AluminiumAxle Material:steelCrank Arm Length:165.0 mm, 170.0 mm, 172.5 mm, 175.0 mm, 177.5 mm, 180.0 mmChainline:43.5 mmQ-Factor:146 mmAxle Diameter:24 mmCompatible BSA Shell Width:68 mmRecommended Bottom Bracket:BB-R9100 or SM-BB92-41B Press Fit Hollowtech II (not included)Recommended Chain:HG-EV 11-speed, HG-X11 (e.g. CN-HG901-11)Tolerance:+/- 2%Point of Measurement:crank armPower Source:lithium-ion battery, integratedBattery Life:min. 300 hData Collected:cadence, power, right-left balance, pedal stroke uniformity, torqueData Transfer:ANT+, Bluetooth LECompatibility:Shifter:ST-R9100, ST-R9120, ST-9001, ST-9000, SL-BSR1, ST-R8000, ST-R8020, ST-R8025, ST-6800, ST-5800, ST-R7000, ST-R7020, ST-R7025, ST-RS685, ST-RS505, ST-U5060, SL-RS700, SL-U5000, ST-RX810, ST-RX600, ST-R9150, ST-R9160, ST-R9170, ST-R9180, ST-9070, SL-9071, ST-R8050, ST-R8060, ST-R8070, ST-6870, ST-6871, ST-R785, ST-RX815Front Derailleur:FD-R9100, FD-R8000, FD-5801, FD-R7000, FD-R9150, FD-R8050Bottom Bracket:BB-R9100, SM-BB9000, SM-BBR60, SM-BB6700, SM-BB5700, BB-RS501, BB-RS500, SM-BB4600, SM-BB92-41B, SM-BB72-41B, SM-BB71-41B, BB-RS500-PBChain:CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG500Chainrings:Y-1VP34000, Y-1VP36000, Y-1VP39000, Y-1VP42000, Y-1VP98010, Y-1VP98020, Y-1VP98030, Y-1VP98040, Y-1VP98050Features:integrated designwater-resistant and designed for use in rainy weatherintegrated, rechargeable battery (charging time 2.5 h)fast system start and direct responsetotal power and separate measurement of left and right leg (strain gauges in the crank arms)simple manual zeroing by pressing a buttonfirmware updates via E-Tube projecteasy chainring change, because strain gauges are integrated in the crank arms and power meter in the spidercharging via magnetic adaptercommunication with ANT+ or Bluetooth LE-enabled deviceshollow crank arms (Hollowtech)anodised crank armsTechnology:Hollowtech II Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life. First-Generation Power Meters Shimano first-generation power meters operate with a central power meter on the crankcase, positioned inconspicuously behind the chainrings. Strain gauges are installed in the crank arms, which record the power for the left and right sides separately. The power meters have Bluetooth and ANT+ compatibility to communicate with bike computers and smartphones. You can easily recharge the integrated battery via a magnetic adapter. Manufacturer Numbers:165.0 mm:I-FCR9100PAXX170.0 mm:I-FCR9100PCXX172.5 mm:I-FCR9100PDXX175.0 mm:I-FCR9100PEXX177.5 mm:I-FCR9100PFXX180.0 mm:I-FCR9100PGXXContents:1 x Shimano Dura-Ace FC-R9100-P crank with power meter sensors1 x Shimano crank bolt1 x magnet set1 x 1.5 m charging cable1 x magnet positioning tool1 x Shimano TL-FC40 crank assembly tool4 x chainring boltsOrder Together:Dura-Ace chainrings Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
