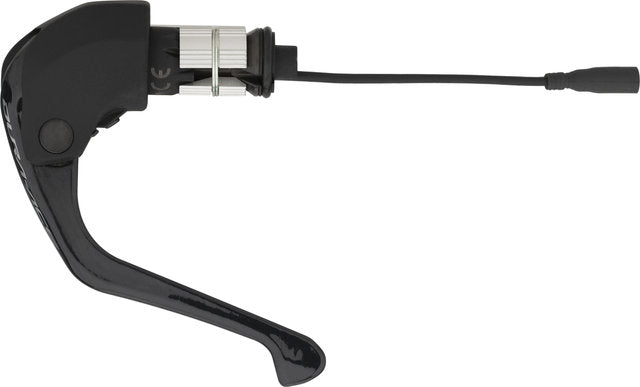

Shimano dura-ace di2 shift brake lever sti st-r9160 2- 11- 12-speed

Product Description The Dura-Ace Di2 ST-R9160 Shift/Brake Lever by Shimano - Fast shifting for time trials The Shimano Dura-Ace Di2 ST-R9160 shift/brake lever offers triathletes and time trialists a wide range of customisation options via the E-Tube platform. This allows you to programme the shift levels (2-speed, 11-speed or 12-speed), switch the multi-shift functions on and off and make adjustments to the synchro-shift setting. The Dual Control lever with adjustable reach fits handlebar ends from 19 to 22.5 mm diameter. It enables intuitive and fast electronic shifting in an aerodynamic position, but thanks to STI technology also serves for well-dosed control of SLR-EV rim brakes. Information regarding the return of batteries and electrical equipment:Information on the return and disposal of batteries and electrical equipment can be found here. Specifications:Series:Dura-Ace Di2 R9150Application:Triathlon & Time TrialGearing:2-speed, 11-/12-speedShifting System:electronicBrake Type:mechanicalTechnical Information:Brake Lever Material:carbon (CFRP)Lever Body Material:composite material (GFRP)Mount:bar endsHandlebar Inner Diameter:19.0 - 22.5 mmReach Adjust:boltAdjustment Options:Reach AdjustCompatibility:Outer Handlebar Diameter:22.2 - 24.0 mmPower Cable:EW-SD50 (1 x connection)Front Derailleur: 2x11-speed: FD-R9150, FD-R8050, FD-9070, FD-6870, FD-RX8152x12-speed: FD-R9250**, FD-R8150**, FD-R7150**Crank: 2x11-speed: FC-R9100, FC-R9100-P, FC-R8000, FC-R7000, FC-RS510, FC-9000, FC-6800, FC-5800, FC-RS500, FC-U5000-2, FC-RX810-2, FC-RX600-112x12-speed: FC-R9200, FC-R9200-P, FC-R8100, FC-R8100-P, FC-R7100, FC-RS520Rear Derailleur: 11-speed: RD-R9150, RD-R8050, RD-9070, RD-6870, RD-RX805, RD-RX815, RD-RX81712-speed: RD-R9250**, RD-R8150**, RD-R7150**Cassette: 11-speed: CS-R9100, CS-9000, CS-6800, CS-5800, CS-R8000, CS-HG800-11, CS-R7000, CS-HG700-11, CS-M8000-11, CS-M7000-11, CS-M5100-1112-speed: CS-R9200-12, CS-R8100-12, CS-R8101-12, CS-R7100-12, CS-R7101-12, CS-HG710-12Chain: 11-speed: CN-9000, CN-6800, CN-HG901-11, CN-HG701-11, CN-HG601-11, CN-LG50012-speed: CN-M9100, CN-M8100, CN-M7100, CN-M6100Brake Caliper:BR-R9200, BR-R9210, BR-R9100, BR-R9110, BR-9000, BR-9010, BR-7900, BR-R8100, BR-R8110, BR-RS811-R, BR-R8000, BR-R8010, BR-6800, BR-6810, BR-6700, BR-R7000, BR-R7010, BR-5800, BR-5810, BR-5710, BR-5700, BR-4700, BR-4600, BR-R3000, BR-3500, BR-R561, BR-R2000, BR-CX70, BR-CX50, BR-CX77, BR-R517, BR-R317, BR-RS305, BR-R650*, BR-R451*, BR-R450*, BR-R550*Satellite Shifter:SW-R9150, SW-R9160 * with reduced braking force ** Conversion adapter EW-AD305 required Features:programmable gearingdefault setting left: front derailleur Synchro-Shift, rear derailleur inwardsdefault setting right: front derailleur Synchro-Shift, rear derailleur outwardstidy cockpitintegrated cable and cable routingimproved aerodynamics and optimised grip positionintuitive and fast shiftingE-Tube project ensures firmware updatesSLR-EV brake technologypainted leverTechnology:STI Dual Control Shimano Total Integration (STI) means the combination of braking and shifting functions in one lever, which increases safety when riding. By refining the technology, it became possible to make shifting so smooth at the front and rear that they can be triggered with just one finger. Shimano calls such levers Dual Control Levers (DCL). Digital Integrated Intelligence (Di2) Di2 systems are the electronic shifting systems from Shimano. They are based on the SEIS, the Shimano Electronic Intelligent System, which takes over the index shifting function from the mechanical components, only via power cables or radio signals and not via a Bowden cable. Shifting is done by simply pressing a button. This has the advantage that no great effort is required, your concentration on the ride is not disturbed and operation is easy even with cold hands. In addition, the electronic gear changes are very fast and highly precise. There is also no risk of a defective circuit due to dirty cables or other problems. You can adjust individual settings via the E-Tube Project, such as adjusting the shifting speed, the number of shifting operations per button press or the Synchro or Semi-Synchro shifting function. Shimano offers an app for this purpose. Gear maintenance and firmware updates are also done via E-Tube, with the bike connected to a PC running the appropriate E-Tube software for more extensive workshop work. Models:2-speed: Mount:leftManufacturer Number:I-STR9160L 11-speed: Mount:rightManufacturer Number:I-STR9160RContents:1 x Shimano Dura-Ace Di2 ST-R9160 shift/brake lever1 x Shimano 105 mm power cable1 x Shimano TL-EW02 plug tool (11-speed version only) Manufacturer: Shimano Europe B.V. High Tech Campus 92 5656 AG Eindhoven Netherlands info@shimano-eu.com
